Product Details:
|
| Capacitance: | 200F | Type: | Super Capacitor Bank |
|---|---|---|---|
| ESR (Equivalent Series Resistance): | 3.7 MΩ | Operating Temperature: | -40°C ~ 70°C |
| Certificate: | RoHS/CE/ISO9001 | Cycle Life: | More Than 20000times |
| Warranty: | 3 Years | Package: | Cartons,Wooden Box Packing |
| Application: | General Purpose, Power, Automotive, AC / Motor | Size / Dimension: | 417*68*122mm |
| Shipment Method: | By Sea And By Air | Capacitance Tolerance: | 20%or+20% |
| Highlight: | Portable Super Capacitor Pack,7.2Wh Super Capacitor Pack,200 Farad Capacitor Module |
||
| Model number: | GHT16V200FL |
| Place of origin: | Guangdong,Cn |

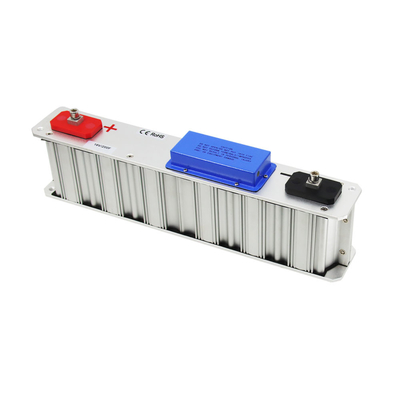

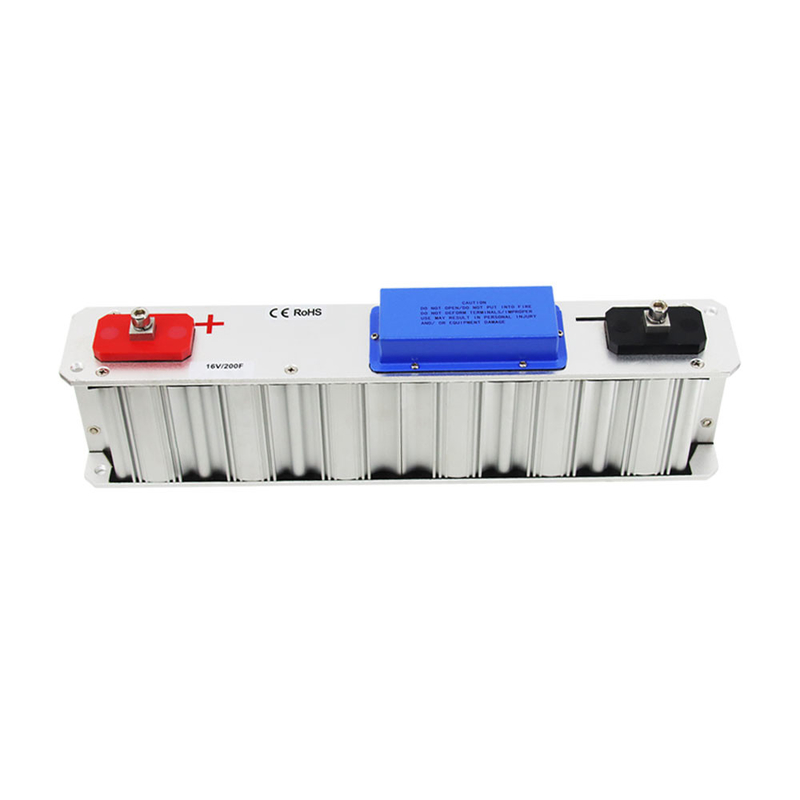

| Product name: | Super capacitor module/super capacitor pack |
| weight: | 3.5 kg |
| Working temperature: | -40~65℃. |
| ESR: | 3.7 mΩ |
| Leakage current | Less than 3.5mA |
| Charging and discharging time | More then 20000 times |
| Application | Energy storage/transportation car power/motor start /car start etc |
| Storage energy: | 7.2 wh |
| Maximum continuous current | 100A |
| Leakage current: | 3.5 mA |
| MOQ: | 2 Cet |
| Specification | 16v 200f |
| SIZE: | 417*68*122(Two sizes with different length, width and height) |
Supercapacitors are already used to rapidly charge the power supplies in hybrid buses as they go from stop to stop. Currently, such chargers aren’t commercially viable to deliver on a mass scale, but as more people buy electric cars the charging infrastructure is likely to develop to a point that widespread supercapacitor chargers become a reality.
But electric car systems, batteries, charging and tech are improving all the time, so the scope for supercapacitors to amp up future EVs is electrifying.
